Showtec BB-7

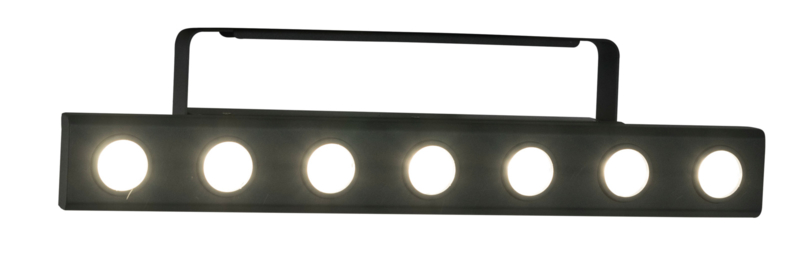

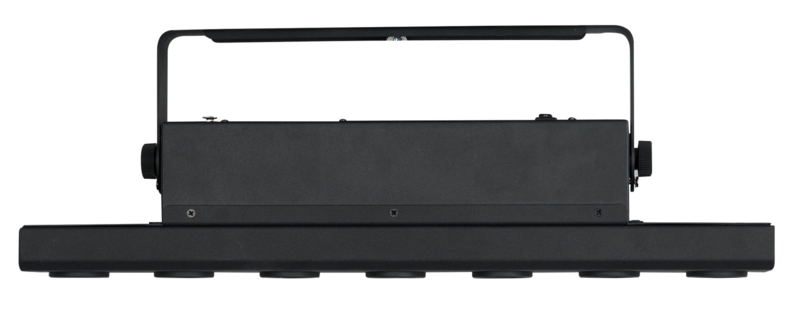

Artikelnummer: 30744The BB-7 Beam bar is a compact strip which is equipped with 7 pieces 3W CREE LED's with color temperature of 3200K. Due to the high precision optics with a 4° beam angle the BB-7 creates an array of intense and razor sharp beams.
The BB-7 is ideal as light curtain or audience blinder but also as background effect. It can be controlled by DMX and has a Propower in and Propower output for quick connection. The intuitive LCD display lets you set the BB-7 in the desired mode easily without any hassle.
Specifications
Light Source
LED System: 7x3W (CREE LEDs)
Drive Current: 630mA
Color temperature: 3200K
Refresh rate: 400Hz
Electrical
Power Supply: 100~240VAC, 50/60Hz
Power Consumption: 30W Max
Control
Control Mode: Auto, Sound, Master/Slave, DMX512
DMX channels: 1, 6 and 7 Channel Mode
Optical system
Dimmer: 0-100%
Max strobe freq.: 25Hz
Field Angle: 4 degrees
Pixels: 1x7
Pixelpitch: 60mm
Physical
Dimensions: 500 x 105 x 130 mm included bracket
Weight: 2.3 Kg
Housing: Metal
Color: Black powder coated
Power Connectors: Blue/White Power connector
DMX Connectors: XLR 3pole In/Out
Safety
Operation temperature: -5~45°
Protection rate: IP20
